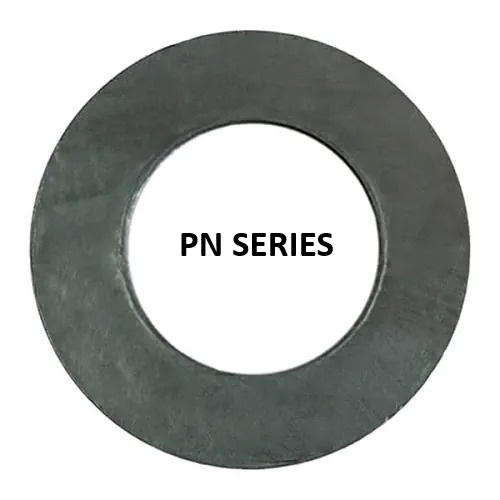

PN SERIES

PN SERIES

PN Series Gaskets: Specifications and Dimensions

PN series gaskets conform to European standards (EN 1092-1 / DIN), where "PN" stands for Pression Nominale (Nominal Pressure). These gaskets are the metric standard across Europe and much of the global industrial market.

Key Specifications & Standards

  • Design Standards: Manufactured in accordance with EN 1514-1 (for non-metallic gaskets) to fit EN 1092-1 and older DIN 2501 steel flanges.
  • Pressure Ratings: Rated in bars of pressure. Common designations include PN6, PN10, PN16, PN25, PN40, and PN63/100.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
GAS050RF1.5PNGR 1/2 NB R/F PN10/40 GSK 1.5MM THK GRAPH PSM/AS
9 In Stock for despatch
£5.00 (exc VAT) per EACH
£6.00 (inc VAT)
-
+
GAS075RFGRAP/PN 3/4"NB RF PN10/40 GSK 1.5MM THK GRAPH PSM/AS
2 In Stock for despatch
£5.30 (exc VAT) per EACH
£6.36 (inc VAT)
-
+
GAS100RF1.5PNGR 1" NB R/F PN16 GASKET 1.5MM THK GRAPH PSM/AS
13 In Stock for despatch
£5.00 (exc VAT) per EACH
£6.00 (inc VAT)
-
+
GAS125RFGRAP/PN 1.1/4"NB RF PN16 GASKET 1.5MM THK GRAPH PSM/AS
14 In Stock for despatch
£8.20 (exc VAT) per EACH
£9.84 (inc VAT)
-
+
GAS150RF1.5PNGR 1.5"NB R/F PN16 GASKET 1.5MM THK GRAPH PSM/AS
8 In Stock for despatch
£10.50 (exc VAT) per EACH
£12.60 (inc VAT)
-
+
GAS200RF1.5PNGR 2" NB R/T PN10/40 GSKT 1.5MM THK GRAPH PSM/AS
13 In Stock for despatch
£10.70 (exc VAT) per EACH
£12.84 (inc VAT)
-
+
GAS250RF1.5PNGR 2.5"NB R/F PN10/40 GSKT 1.5MM THK GRAPH PSM/AS
4 In Stock for despatch
£14.10 (exc VAT) per EACH
£16.92 (inc VAT)
-
+
GAS300RF1.5PNGR 3" NB RF PN10/40 RT GSK 1.5MM THK GRAPH PSM/AS
5 In Stock for despatch
£16.00 (exc VAT) per EACH
£19.20 (inc VAT)
-
+
GAS400RF1.5PNGR 4" NB RF PN16 IBC GSKT 1.5MM THK GRAPH PSM/AS
3 In Stock for despatch
£22.20 (exc VAT) per EACH
£26.64 (inc VAT)
-
+
GAS500RF1.5PNGR 5" NB R/F PN16 GASKET 1.5MM THK GRAPH PSM/AS
1 In Stock for despatch
£31.80 (exc VAT) per EACH
£38.16 (inc VAT)
-
+
GAS600RF1.5PNGR 6" NB RF PN16 IBC GSKT 1.5MM THK GRAPH PSM/AS
3 In Stock for despatch
£40.70 (exc VAT) per EACH
£48.84 (inc VAT)
-
+
GAS800RF1.5PNGR 8" NB RF PN16 IBC GSKT 1.5MM THK GRAPH PSM/AS
4 In Stock for despatch
£66.30 (exc VAT) per EACH
£79.56 (inc VAT)
-
+
GAS1000RF1.5PGR 10"NB RF PN16 IBC GSKT 1.5MM THK GRAPH PSM/AS
5 In Stock for despatch
£70.50 (exc VAT) per EACH
£84.60 (inc VAT)
-
+
