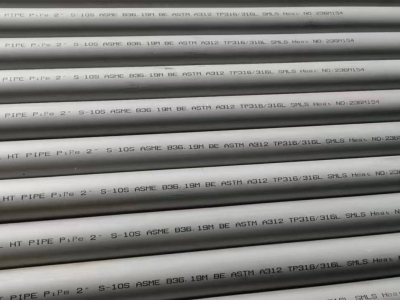

SCHED 80

SCHED 80

Schedule 80 metric pipe dimensions


Nominal Pipe Size (NPS)

Outside Diameter (mm)

Wall Thickness (mm)

1/2 inch

21.3 mm

3.73 mm

3/4 inch

26.7 mm

3.91 mm

1 inch

33.4 mm

4.55 mm

1 1/4 inches

42.2 mm

4.85 mm

1 1/2 inches

48.3 mm

5.08 mm

2 inches

60.3 mm

5.54 mm

2 1/2 inches

73.0 mm

7.01 mm

3 inches

88.9 mm

7.62 mm

3 1/2 inches

101.6 mm

8.08 mm

4 inches

114.3 mm

8.56 mm

5 inches

141.3 mm

9.53 mm

6 inches

168.3 mm

10.97 mm

8 inches

219.1 mm

12.70 mm

10 inches

273.0 mm

15.09 mm

12 inches

323.8 mm

17.48 mm

For Schedule 80 pipe, the outside diameter (OD) for a given NPS remains consistent with Schedule 40, but the wall thickness is notably greater to withstand higher pressures and provide increased durability.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
TUBE025-80-316 1/4NB SCH 80 316 S/S TUBE
Out of Stock
£102.90 (exc VAT) per MTR
£123.48 (inc VAT)
-
+
TUBE050-80-316S 1/2"NB SCH80S A312 316L 21.34 X 3.73 SMLS PIPE
4.02 In Stock for despatch
£227.80 (exc VAT) per MTR
£273.36 (inc VAT)
-
+
TUBE075-80-316 3/4"NB SCH80S A312 316L 26.67 X 3.91 SMLS PIPE
Out of Stock
£224.20 (exc VAT) per MTR
£269.04 (inc VAT)
-
+
TUBE100-80-316 1"NB SCH80S A312 316L 33.4 X 4.55 SMLS PIPE
9 In Stock for despatch
£278.40 (exc VAT) per MTR
£334.08 (inc VAT)
-
+
TUBE125-80-316S 1.1/4"NB SCH80S A312 316L 42.16 X 3.56 SMLS* PIPE
Out of Stock
£649.60 (exc VAT) per MTR
£779.52 (inc VAT)
-
+
TUBE150-80-316 1.1/2"NB SCH80S 316L PIPE SMLS A312 48.26 X 5.08MM
Out of Stock
£496.50 (exc VAT) per MTR
£595.80 (inc VAT)
-
+
TUBE200-80-316 2"NB SCH80S A312 316L 60.3 X 5.54 SMLS PIPE
3 In Stock for despatch
£340.90 (exc VAT) per METRE
£409.08 (inc VAT)
-
+
TUBE250-80-316 2.1/2"NB SCH80 A312 316L 73.03 X 7.01 SMLS PIPE
Out of Stock
Price Unavailable
-
+
TUBE300-80-316 3" SCH 80 316 TUBE SEAMLESS 88.9MM OD X 7.62
Out of Stock
£798.30 (exc VAT) per METRE
£957.96 (inc VAT)
-
+
