SCHED 80

SCHED 80

Schedule 80 metric pipe dimensions


Nominal Pipe Size (NPS)

Outside Diameter (mm)

Wall Thickness (mm)

1/2 inch

21.3 mm

3.73 mm

3/4 inch

26.7 mm

3.91 mm

1 inch

33.4 mm

4.55 mm

1 1/4 inches

42.2 mm

4.85 mm

1 1/2 inches

48.3 mm

5.08 mm

2 inches

60.3 mm

5.54 mm

2 1/2 inches

73.0 mm

7.01 mm

3 inches

88.9 mm

7.62 mm

3 1/2 inches

101.6 mm

8.08 mm

4 inches

114.3 mm

8.56 mm

5 inches

141.3 mm

9.53 mm

6 inches

168.3 mm

10.97 mm

8 inches

219.1 mm

12.70 mm

10 inches

273.0 mm

15.09 mm

12 inches

323.8 mm

17.48 mm

For Schedule 80 pipe, the outside diameter (OD) for a given NPS remains consistent with Schedule 40, but the wall thickness is notably greater to withstand higher pressures and provide increased durability.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity

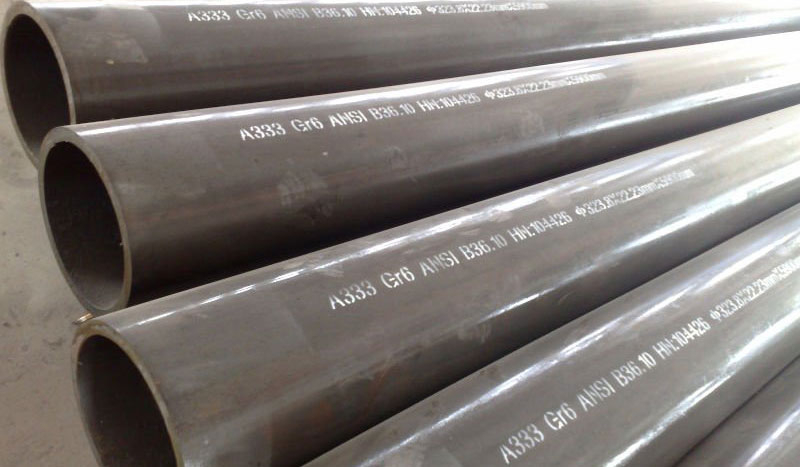

TUBE050-80-A333 1/2" A333 LOW TEMP TUBE SCH 80 21.3MM OD X 3.73
Out of Stock
Price Unavailable
-
+
TUBE075-80-A333 3/4" A333 LOW TEMP TUBE SCH 80 26.7MM OD X 3.91
0.79 In Stock for despatch
Price Unavailable
-
+
TUBE100-80-A333 1" A333 LOW TEMP STL TUBE SCH 80 33.4MM OD X 4.55
3 In Stock for despatch
Price Unavailable
-
+
TUBE125-80-A333 1.1/4 A333 LOW TEMP TUBE SCH 80 42.2MM OD X 4.85
Out of Stock
Price Unavailable
-
+
TUBE150-80-A333 1.1/2 A333 LOW TEMP TUBE SCH 80 48.3MM OD X 5.08
Out of Stock
Price Unavailable
-
+
TUBE200-80-A333 2" A333 LOW TEMP STL TUBE SCH 80 60.3MM OD X 5.54
6 In Stock for despatch
Price Unavailable
-
+
TUBE400-80-A333 4" A333 LOW TEMP STL TUBE SCH 80 114.3MM OD X 8.56
Out of Stock
Price Unavailable
-
+
TUBE500-80-A333 5" A333 LOW TEMP STL TUBE SCH 80 141.3MM OD X 9.53
Out of Stock
Price Unavailable
-
+
TUBE600-80-A333 6" NB A333 LOW TEMP TUBE SCH 80 168.3MM OD X 10.97
Out of Stock
Price Unavailable
-
+
TUBE800-80-A333 8" A333 API5L STEEL TUBE SCH 80 219.1MM OD X 12.70 LOW TEMP
Out of Stock
£1,614.60 (exc VAT) per METRE
£1,937.52 (inc VAT)
-
+
