LARGE FLANGE

LARGE FLANGE

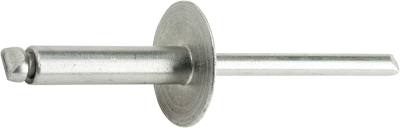

Large flange blind rivets (also known as large head rivets) feature an oversized, washer-like rim designed to provide a significantly larger bearing surface.

They are the go-to solution for joining soft, thin, or brittle materials where a standard dome head might pull through or damage the surface.

Key Benefits

  • Load Distribution: The flange can be up to double the diameter of a standard dome head, spreading clamping force over a broader area to prevent material fatigue or tearing.
  • Superior Pull-out Resistance: The wider head provides a more secure hold, making it ideal for assemblies facing high vibration or stress.
  • Tolerance Compensation: The larger head can sometimes cover slightly oversized or irregular drill holes.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
BDR4.8-20SSLF 4.8 X 20 ST/ST LARGE FLANGE RIVETS 16MM FLANGE A2
Out of Stock
£716.60 (exc VAT) per THOU
£859.92 (inc VAT)
-
+
