METRIC THREAD

METRIC THREAD

Metric threads, the most widely used general-purpose screw threads globally, are defined by the ISO Metric Screw Thread standard (ISO 68). They are characterized by a symmetric V-shape profile with a 60° flank angle.

Designation System

A metric thread is designated by the letter M followed by its nominal major diameter in millimetres. If the pitch is not the standard "coarse" pitch, it is specified after the diameter, separated by an "x" (or a dash).

  • M8: Refers to a coarse thread with a nominal diameter of 8 mm (and an implied standard pitch of 1.25 mm).
  • M8x1: Refers to a fine thread with a diameter of 8 mm and a pitch of 1 mm.

Coarse vs. Fine Threads

Metric threads are available in two primary pitch types, which are not related to manufacturing quality.

  • Coarse Threads:
    • Feature a larger pitch (distance between threads).
    • Are the more common and general-purpose type, widely available and suitable for most applications.
    • Allow for quick assembly and disassembly.
  • Fine Threads:
    • Have a smaller pitch, meaning more threads per unit of length.
    • Offer enhanced strength and better resistance to loosening from vibration.
    • Require a longer thread engagement and are often found in automotive and aerospace applications.

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity

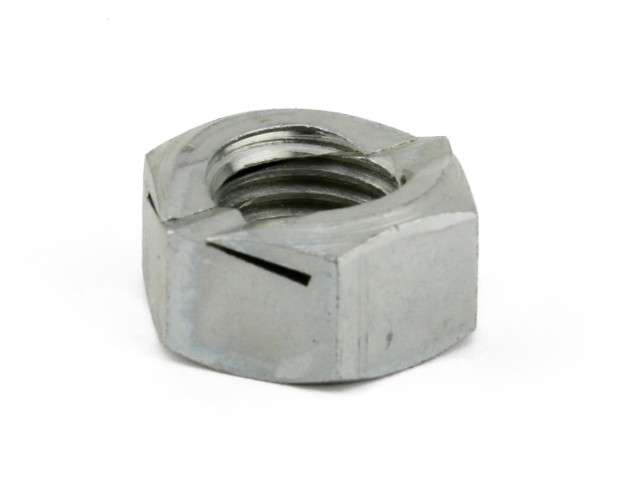

BINXM03 M 3 BINX NUT ZINC
Out of Stock
£80.80 (exc VAT) per HUND
£96.96 (inc VAT)
-
+
BINXM04 M 4 BINX NUT ZINC
1920 In Stock for despatch
£99.40 (exc VAT) per HUND
£119.28 (inc VAT)
-
+
BINXM05 M 5 BINX NUT ZINC
10 In Stock for despatch
Price Unavailable
-
+
BINXM06 M 6 BINX NUT ZINC
948 In Stock for despatch
Price Unavailable
-
+
BINXM08 M 8 BINX NUT ZINC
400 In Stock for despatch
£98.33 (exc VAT) per HUND
£118.00 (inc VAT)
-
+
BINXM10 M10 BINX NUT ZINC
438 In Stock for despatch
£146.76 (exc VAT) per HUND
£176.11 (inc VAT)
-
+
BINXM12 M12 BINX NUT ZINC
148 In Stock for despatch
£266.10 (exc VAT) per HUND
£319.32 (inc VAT)
-
+
BINXM16 M16 BINX NUT ZINC
13 In Stock for despatch
£421.59 (exc VAT) per HUND
£505.91 (inc VAT)
-
+
BINXM20 M20 BINX NUT ZINC
5 In Stock for despatch
£1,099.70 (exc VAT) per HUND
£1,319.64 (inc VAT)
-
+
BINXM22 M22 BINX NUT ZINC
80 In Stock for despatch
Price Unavailable
-
+
BINXM24 M24 BINX NUT ZINC
39 In Stock for despatch
£1,314.00 (exc VAT) per HUND
£1,576.80 (inc VAT)
-
+
